Crane / Suspended Scales

ALL PRICES EXCLUDE VAT AND DELIVERY

DIGI OCS SERIES CRANE SCALE

Description
  • Digital crane weigher with remote control.
  • Supplied with manufacturer's calibration cert and proof load test cert
  • Big range of capacities.
  • Top quality DIGI brand ,
  • Super bright display easily seen up to 25 metres away.(30mm bright red LED)
  • Heavy duty aluminium housing
    remote control with up to 200 item store of weight data

  • Rechargeable battery pack operation

  • Tare range 100%
    proof load 200%


Model Capacity/Division Height (mm) Price
OCS-500 500kg//0.2kg - 545
OCS-1 1000kg/0.5kg -  545
OCS-2 2000kg/1kg -  615
OCS-3 3000kg/1kg - 645
OCS-5 5000kg/2kg -  845
OCS-7.5 7500kg/5kg -  995
OCS10 10000kg/5kg -  1095
UWE ACS SERIES CRANE SCALE - TRADE APPROVED

Description
  • Class III EC Approved - stamping fee included
  • Heavy duty construction. 360 free rotating hook (up to 3T)
  • 25mm LED display
  • Rechargeable battery
  • Hold Function
  • Full range tare
  • Selectable auto-off function
  • Supplied with remote control, battery charger, proof load and calibration certificate.Metric only

Model Capacity/Division Height (mm) Price
ACS-600 600kg/0.2kg 575 745
ACS-1.5T 15kg/0.5kg 585  815
ACS-3T 3000kg/1kg 609  875
ACS-6T 6000kg/2kg 860 1115
UWE HTB SERIES CRANE SCALE

Description
  • 2mm backlit double sided LCD display
  • ABS plastic housing with IP65 rating
  • Auto zero, full range tare and hold function
  • 12 V DC rechargeable battery
  • 100 hours life
  • Kgs and decimal lbs



  • Price includes 340mm diameter stainless steel pan

Model Capacity/Division Height (mm) Price
HTB-6 6kg/2g 282 295
HTB-12 12kg/5g 282  295
HTB-30 30kg/10g 282  295
NAGATA HJS-33 SERIES CRANE SCALE

Description
  • 38mm red LED display. Aluminium alloy housing
  • 6V DC rechargeable battery
  • 150 hours life
  • Auto zero and tare function.
  • Kgs and decimal lbs
  • Safety overload of 250% capacity




  • Prices include charger, remote control, proof load test & calibration certificate
  • 'S' type load cells


Model Capacity/Division Height (mm) Price
HJS-33-300 300kg/100g 600 495
HJS-33-600 600kg/200g 600  515
HJS-33-1500 1500kg/500g 600  575
HJS-33-3000 3000kg/1000g 600 665

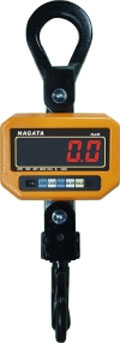

NAGATA HJM-33 SERIES CRANE SCALE

Description
  • 46mm red LED display. Aluminium alloy housing
  • 6V DC rechargeable battery
  • 150 hour life
  • Auto zero and tare function
  • Kg and decimal lbs
  • Safety overload of 250% capacity




  • Prices include charger, remote control, proof load test and calibration certificate
  • 'S' type load cell


Model Capacity/Division Height (mm) Price
HJM-33-3T 3000kg/1kg 798 765
HJM-33-5T 5000kg/2kg 813  875
HJS-33-10T 10000kg/5kg 945  1495

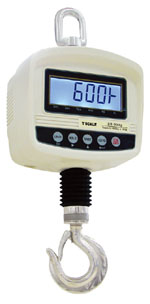

TURIER DR SERIES CRANE SCALE

Picture shown is of DR-600 and there are slight difference between models

Description
  • Easy to use - front panel configuration
  • 25mm LCD display, attached backlight
  • Reading lock, units conversion, Tare
  • Remote controller
  • Battery provide up to 40 hours of
    continuous use
Model Capacity/Division Height (mm) Price
DR-300 300kg/100g 330 299
DR-600 600kg/200g 390  299
JUMBOWEIGHER JW SERIES CRANE SCALE

Picture shown is of JW-5T/ JW-10T and there are slight difference between models

Description
  • Heavy duty crane scale designed to be used in the harshest industrial environments.
  • Available in capacities 5, 10 and 20 tonne.
  • Bright LED display makes it easy to read In the lowest light applications.
  • Large keys make operation simple even if wearing gloves.
  • Supplied with remote control with tare and hold facility.
  • Supplied in purpose built wooden storage/transit case.

Model Capacity/Division Height (mm) Price
JW-5T 5000kg/2kg 595 699
JW-10T 10000kg/5kg 660  899
JW-20T 20000kg/10kg 980 1299

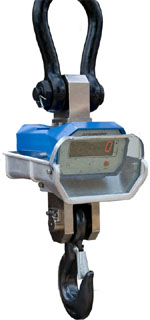

JUMBOWEIGHER JWF SERIES FOUNDRY SCALE

Description
  • Heavy duty crane scale designed to be used in the harshest industrial environments.
  • Available in capacities 5, 10 and 20 tonne.
  • Bright LED display makes it easy to read In the lowest light applications.
  • Large keys make operation simple even if wearing gloves.
  • Supplied with remote control with tare and hold facility.
  • Supplied in purpose built wooden storage/transit case.
  • Supplied with a foundry heat shield so that the scale can be used in areas up to 1600 degrees C at distance of 2 metres.
Model Capacity/Division Height (mm) Price
JWF-5T 5000kg/2kg TBC 1545
JWF-10T 10000kg/5kg TBC  2275
UWE HS SERIES CRANE SCALES

Description
  • Battery or mains operation via adaptor (extra)
  • 250 hours battery operation
  • Auto cut-off
  • Backlit
  • Full Tare

OPTIONS:

  • 290mm Dia S.S. pan & pan support

  • Optional mains adaptor


Model Capacity/Division Height (mm) Price
HS-3000 3000g/2g 285 99
HS-7500 7500g/5g 285 99
HS-15K 15kg/10g 285 99
HS-30K 30kg/20g 285 99



Options

MAINS ADAPTER



20

EXTRA FOS S.S. PAN & SUPPORT

+380mm

55

SALTER BRECKNELL ELECTROSAMSON BALANCE NON TRADE

Description
  • Battery powered, hand held electronic digital balance, suitable for a wide variety of applications from poultry weighing and fishing through to fire extinguisher and general purpose suspended weighing.

  • Key features include kg/lb/oz switching, display hold, tare and auto shutoff to maximize battery life. Supplied complete with padded carrying pouch with belt clip and 1 x 9 volt battery (PP3).

  • Display: LCD display (4 x 13mm high digits)

  • Fittings:  Top T bar grip handle and bottom hook.

Model Capacity/Division Height (mm) Price
ES10K 10kg/10g - 89
ES25K 25kg/20g -  89
ES45K 45kg/50g -  99
SALTER BRECKNELL 235 6S HANGING SCALE

Description
  • Compact, robust and corrosion resistant suspended scale with 150mm-diameter dial.

  • Housed in a tough ABS plastic case with a shatterproof polycarbonate dial cover.

  • Low friction Acetal bearings provide positive movement to give maximum sensitivity.

  • Accurate to 1 part in 250 with up to 15% zero adjustment.

Model Capacity/Division Height (mm) Price
2356S-5 5kg/20g - 69
2356S-10 10kg/50g - 69
2356S-25 25kg/100g - 69
2356S-50 50kg/200g - 69
2356S-100 100kg/500g - 69
2356S-11 11lb/1oz(dual) - 69
2356S-22 22lb/2oz(dual) - 69
2356S-56 56lb/4oz(dual) - 69
2356S-110 110lb/8oz(dual) - 69
2356S-220 220lb/1lb(dual) - 69
SALTER BRECKNELL 2356M HANGING SCALE

Description
  • Compact and robust suspended scale, with 150mm diameter dial.
  • Housed in the traditional metal case.
  • Accurate to 1 part in 250 with up to 10% zero adjustment.

Model Capacity/Division Height (mm) Price
2356M-5 5kg/20g - 95
2356M-10 10kg/50g - 95
2356M-25 25kg/100g - 95
2356M-50 50kg/200g - 95
2356M-100 100kg/500g - 95
2356M-11 11lb/1oz(dual) - 95
2356M-22 22lb/2oz(dual) - 95
2356M-56 56lb/4oz(dual) - 95
2356M-110 110lb/8oz(dual) - 95
2356M-220 220lb/1lb(dual) - 95
SALTER BRECKNELL 23510S HANGING SCALE NON TRADE

Description
  • Robust and corrosion resistant suspended scale with large, easy to read 254mm-diameter dial.
  • Housed in a tough ABS plastic case with a shatterproof polycarbonate dial cover.
  • Nylon bearings provide positive movement to give maximum sensitivity. Accurate to 1 part in 500 with up to 10% zero adjustment
Model Capacity/Division Plate size (mm) Price
23510S-5 5kg/20g - 149
23510S-10 10kg/50g - 149
23510S-25 25kg/100g - 149
23510S-50 50kg/200g - 149
23510S-100 100kg/500g - 149
SALTER BRECKNELL 235-10X TRADE HANGING SCALE

Description
  • Heavy duty, EU trade approved suspended scale with 254mm diameter easy to read dial.
  • Housed in a robust, grey die cast casing and available in a wide variety of build options.
  • Low friction ball race bearings, up to 10 kg, and nylon bearings, up to 30kg, provide positive movement to give maximum sensitivity.
  • Accurate to one part in 1000 (trade only).

Build options:

  • Top or bottom swivel hook

  • Double lipped scoop (5kg)

  • Double lipped scoop (10kg)

  • Double dial face

  • Plugged dials (for export only)

  • Can be supplied with dual marked weights charts (i.e. LB's & Kg) P.O.A.

Model Capacity/Division Plate size (mm) Price
23510X-NT - - 220
23510X-T - - 295
23510X-10 SCOOP - 10kg - 155
23510X-5 SCOOP-5kg - 125
23510X-DSD DOUBLE SIDED DIAL - 95
SALTER BRECKNELL MATCH SCALE

Description
  • Robust and lightweight, this dual revolution dial scale is ideal for club and competition fishing.
  • Low friction Acetal bearings provide positive movement to give maximum sensitivity. Accurate to 1 part in 500 with up to 15% zero adjustment.

  • Display:  254mm-diameter dial

  • Fittings:  Top grip handle, weighing net and waterproof bag

Model Capacity/Division Height (mm) Price
MATCH10 10kg/10g - 173
MATCH20 20lb/1/4oz - 173
MATCH50 50lb/1oz - 173
